Transcatheter Mitral Valve Replacement: Update on New Devices

Matthew J. Gillespie, MD1,2*, Robert C. Gorman, MD2,3, Joseph H. Gorman III, MD2,3

1 The Children’s Hospital of Philadelphia, Division of Cardiology, Philadelphia, PA, USA
2 Gorman Cardiovascular Research Group, Department of Surgery, Philadelphia, PA, USA
3 Perelman School of Medicine, University of Pennsylvania, Philadelphia, PA, USA


Transcatheter Mitral valve replacement represents the next frontier in cardiac valve therapy.  This review article details the authors' experience thus far in the development of a novel catheter-based mitral valve replacement device, and also highlights the preliminary experiences of other new technologies.


  • Video 1

    An aortagram following Melody VIR, and importantly there is no aortic valve insufficiency.

  • Video 2

    A Melody valve compressed onto a delivery balloon being advanced transvenouslyacross the atrial septume and subsequently withing the “incomplete annuloplastyring”.

  • Video 3

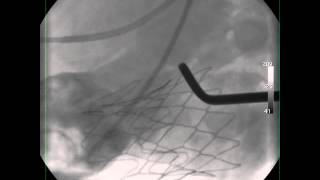

    The Melody valve securely seated within the incomplete annuloplasty ring. There is excellent systolic fuinction and no LVOT obstruction.

  • Video 4

    This movie shows that there is no aortic valve insufficiency following Melody-in-incomplete-ring procedure. This is a very importatnt finding, because up until this point, it was generally believed that absence of a ring along the anterior leaflet would result in deformation of the aortic valve due to the mitral-to-aortic valve fibrous continuity. These experiments proved that this was indeed not true.

  • Video 5

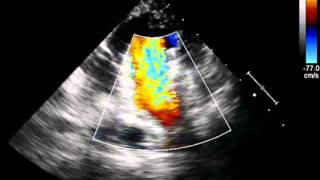

    Color Doppler interrogation shows mild central MR, and no perivalvular leak.This video show typical results following Melody valve-in-ring mitral implantation.

  • Video 6

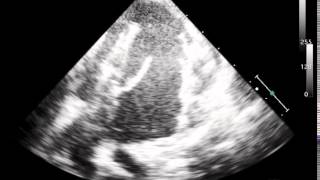

    A 2d image of the Melody valve and it’s relationship to the aortic valve. This video show typical results following Melody valve-in-ring mitral implantation.

  • Video 7

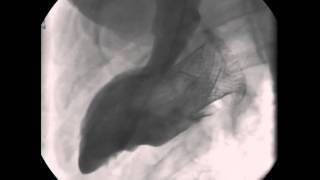

    LV gram post SMV replacement.

  • Video 8

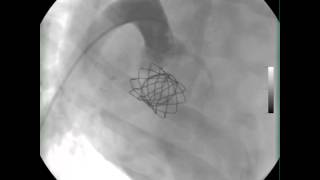

    Aortagram post SMV replacement.

  • Video 9

    Left Coronary.

  • Video 10

    This movie depicts a baseline left ventriculogram in a porcine model.

  • Video 11

    The sequence of valve deployment is initiated, beginning by withdrawing the outer sheath to allow the ventricular arms of the device to blossom. Once the ventricular side is opened, the device is withdraw towards the left atrium. This “traps” the anterior and posterior leaflets of the native mitral valve between the body of the SMV device and the ventricular arms. This is important for secure anchoring in the mitral position.

  • Video 12

    Once the ventricular end of the device is set, the outer sheath is fully withdrawn, allowing the atrial side of the device to open on the LA side of the mitral annulus.

  • Video 13

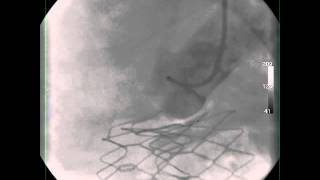

    LV gram post release.

  • Video 14

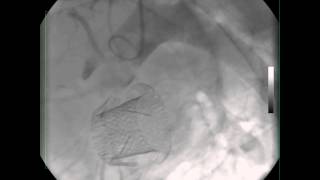

    Aortagram post release.

  • Video 15

    Echo Post.

  • Video 16

    Echo Post: color
